how to connect Vtrak D5320fxd + J5320xd + J5960sD

  • 37 Views
  • Last Post 3 days ago
Mike Ross posted this 5 days ago

Hi team

Can you tell me if I can connect these devices at the same time: Vtrak D5320fxD + J5320sD + J5960sD

(Because I am in need of building a storage system including: SSD SAS 43TB; HDD SAS 10K 30TB; HDD SAS 7.2K 440TB, all are configured raid 6)

Many thanks

Order By: Standard | Latest | Votes
R P posted this 4 days ago

Hi,

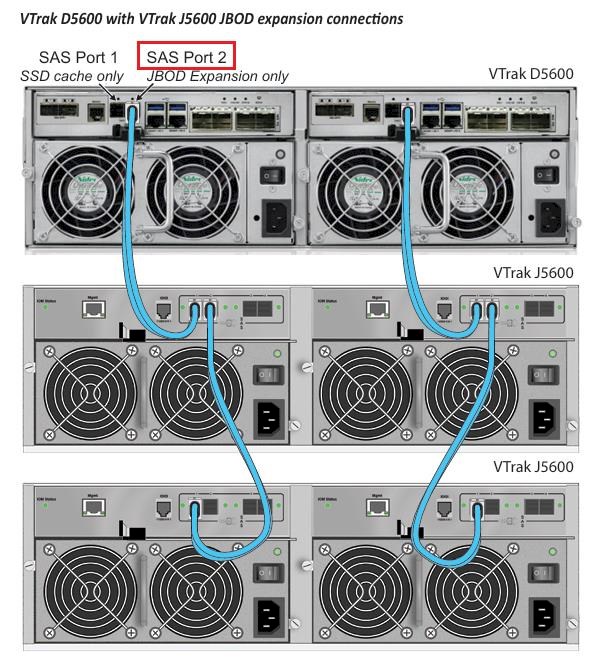

The D5000 product manual shows how to connect JBODs.

From page 38.

Note, on the D5320 you connect to SAS port 2 on the right.



Mike Ross posted this 4 days ago

Hi,

So can I connect the JBODs at the same time the VTRAK J5320 and VTRAK J5960?

R P posted this 3 days ago

Hi,

So can I connect the JBODs at the same time the VTRAK J5320 and VTRAK J5960?

This did not translate well, I do not understand the question.

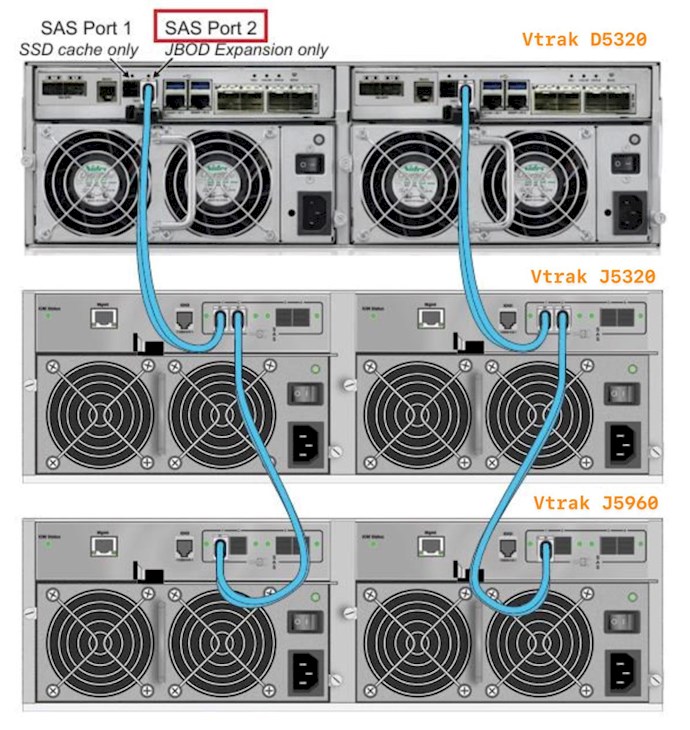

You can connect the JBODs to the D5320, but the proper way is to daisy chain them as in the illustration. Do not connect both JBODs directly to the D5320. It does not matter which JBOD you connect to the D5320, the second JBOD needs to be connected to the first as shown above.
